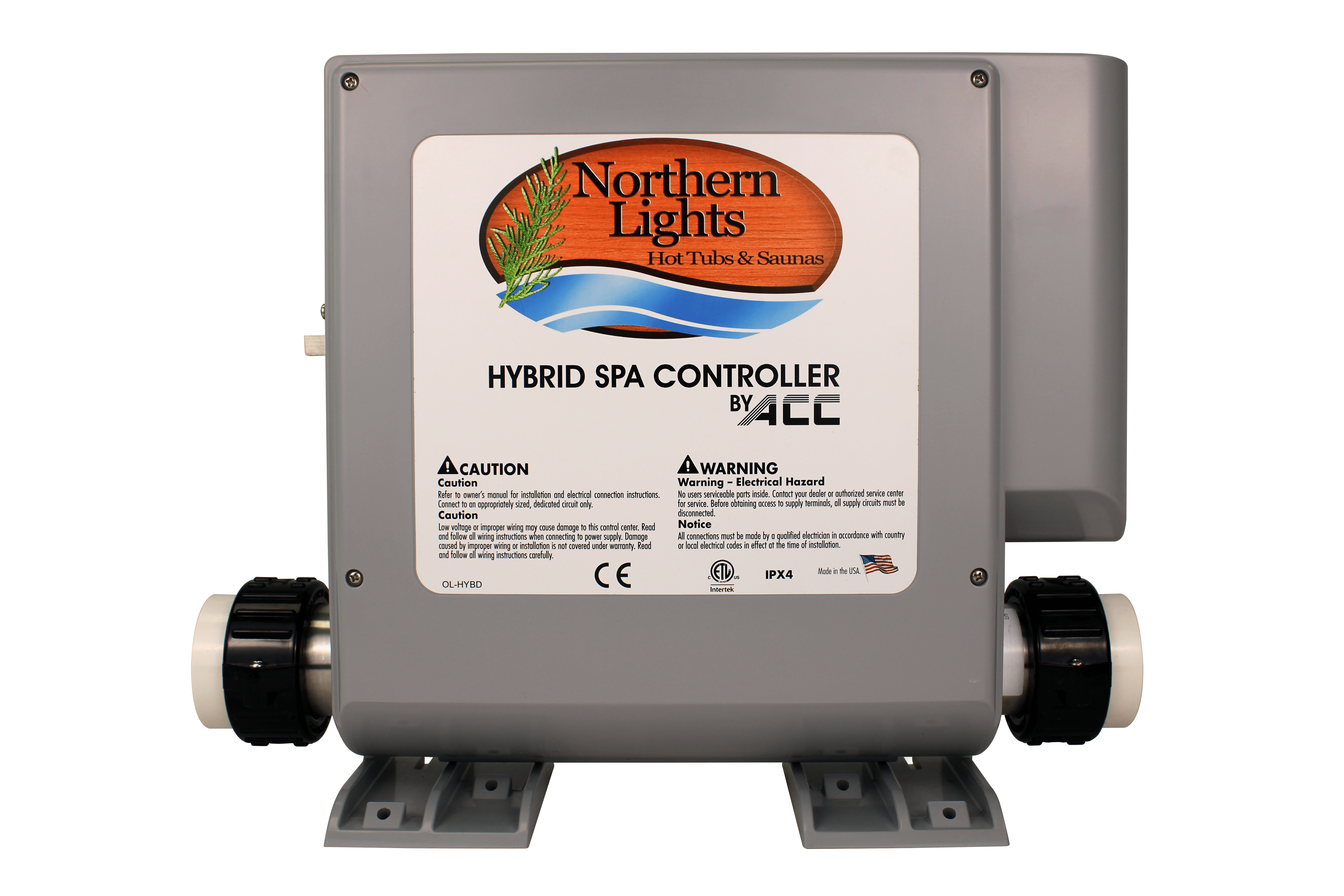

Northern Lights ACC Smartouch Digital 1000 - Hybrid Spa Controller

5.0 Kw Digital Spa Controller

 - Made in America -

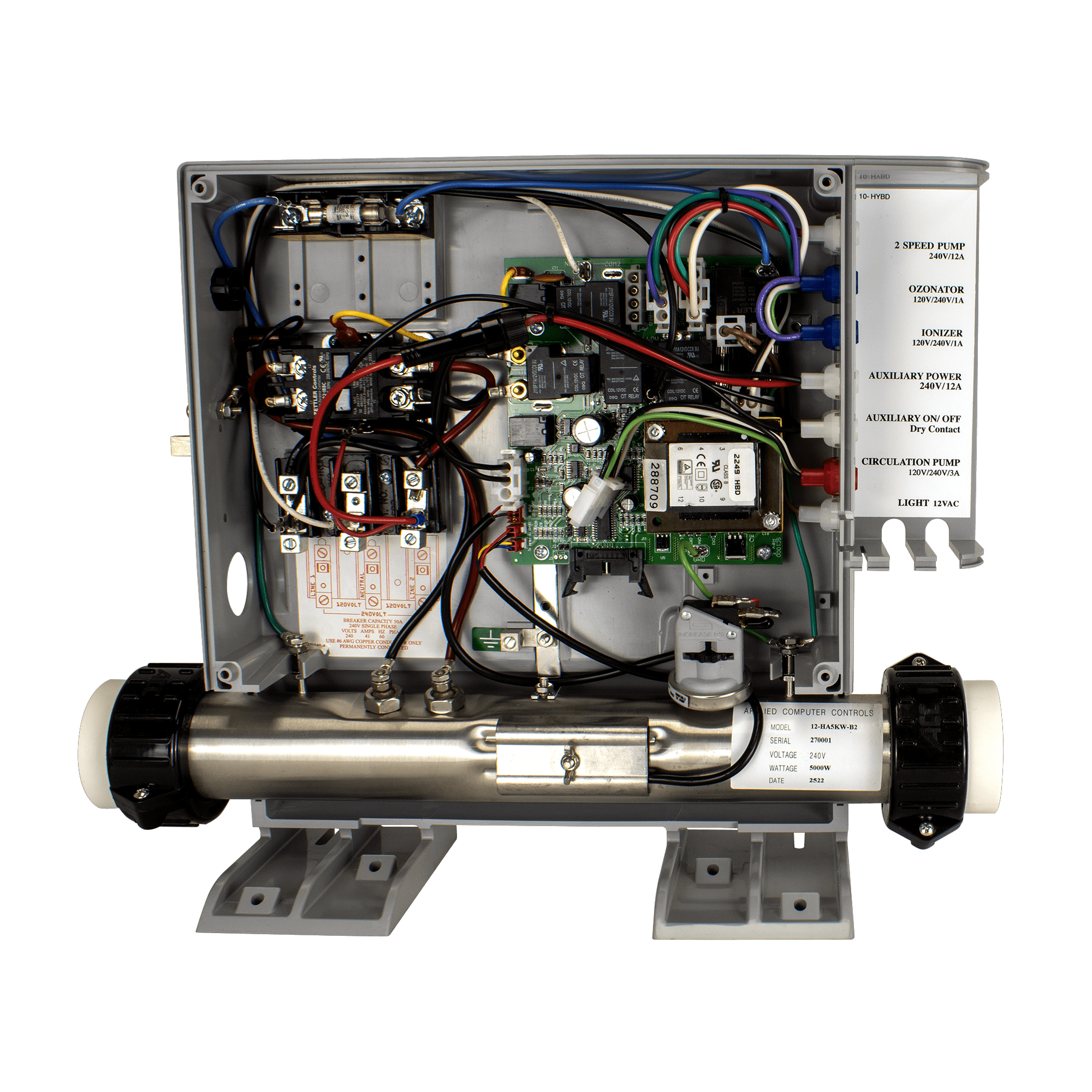

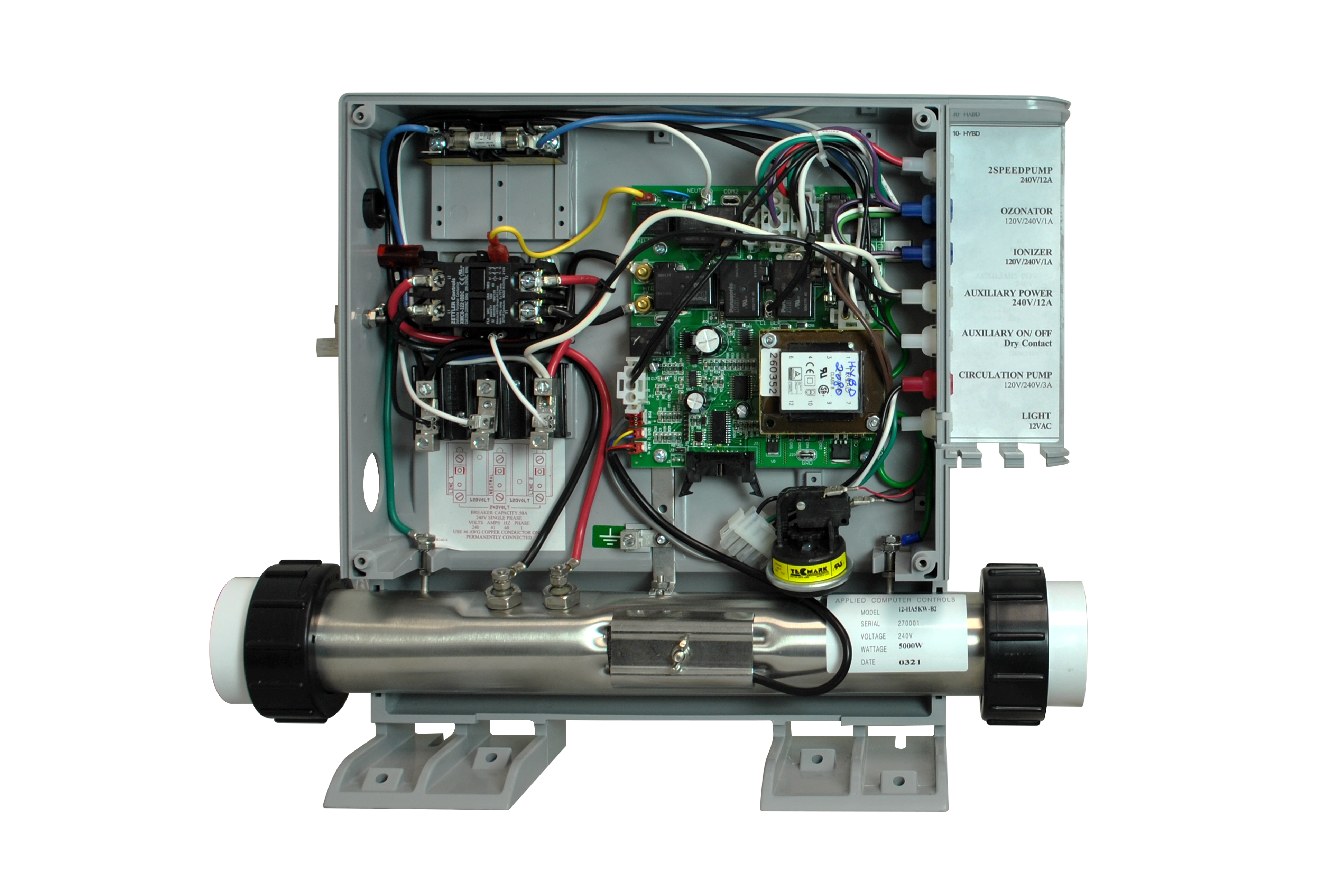

The SMTD-1000-OD HYBD controls either a 2-speed primary pump, or a single speed circulation pump, a 12-volt ac spa light, an ionizer and an ozonator. It also will supply 240V or 120V power to a gas heater or heat pump and a remote on/off control contact (normally open) for either of these heaters.  The system is equipped with a 5.0 kW heating element. The control panel allows heating selection either by the electric element or by the gas heater/heat pump (the auxiliary heater). When in auxiliary heating mode, the unit will automatically switch to electric heating should the water temperature drop below the freeze protection value.

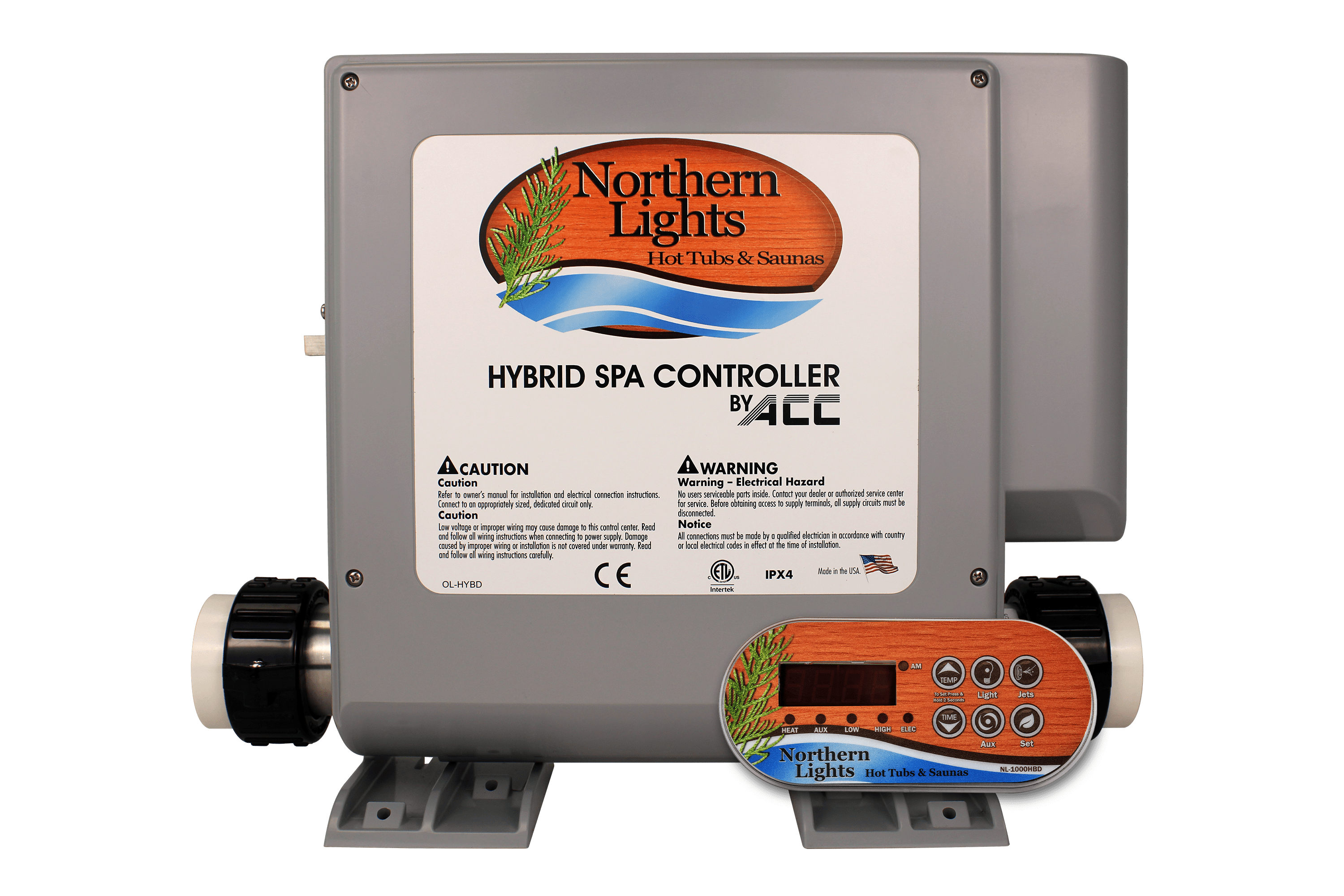

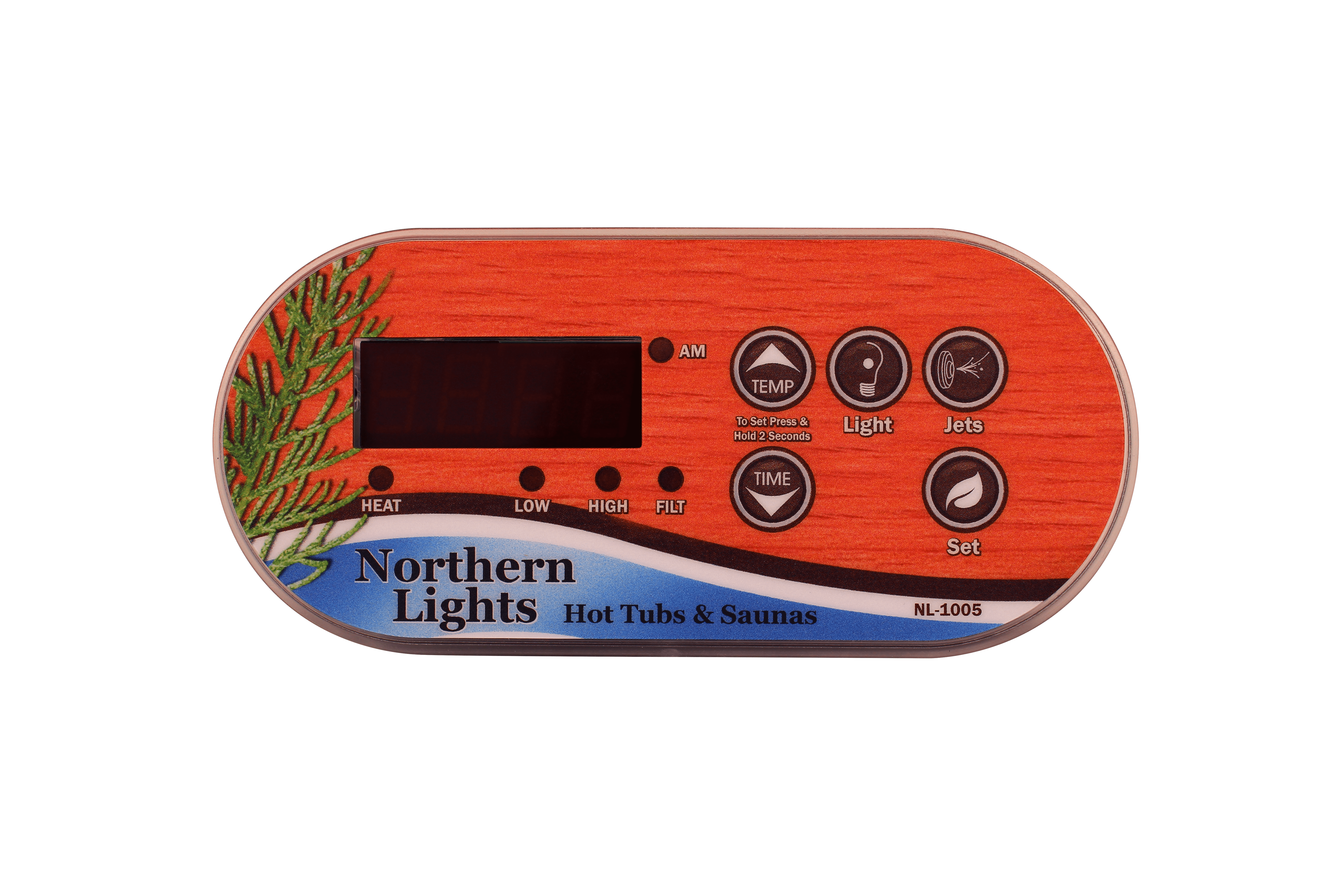

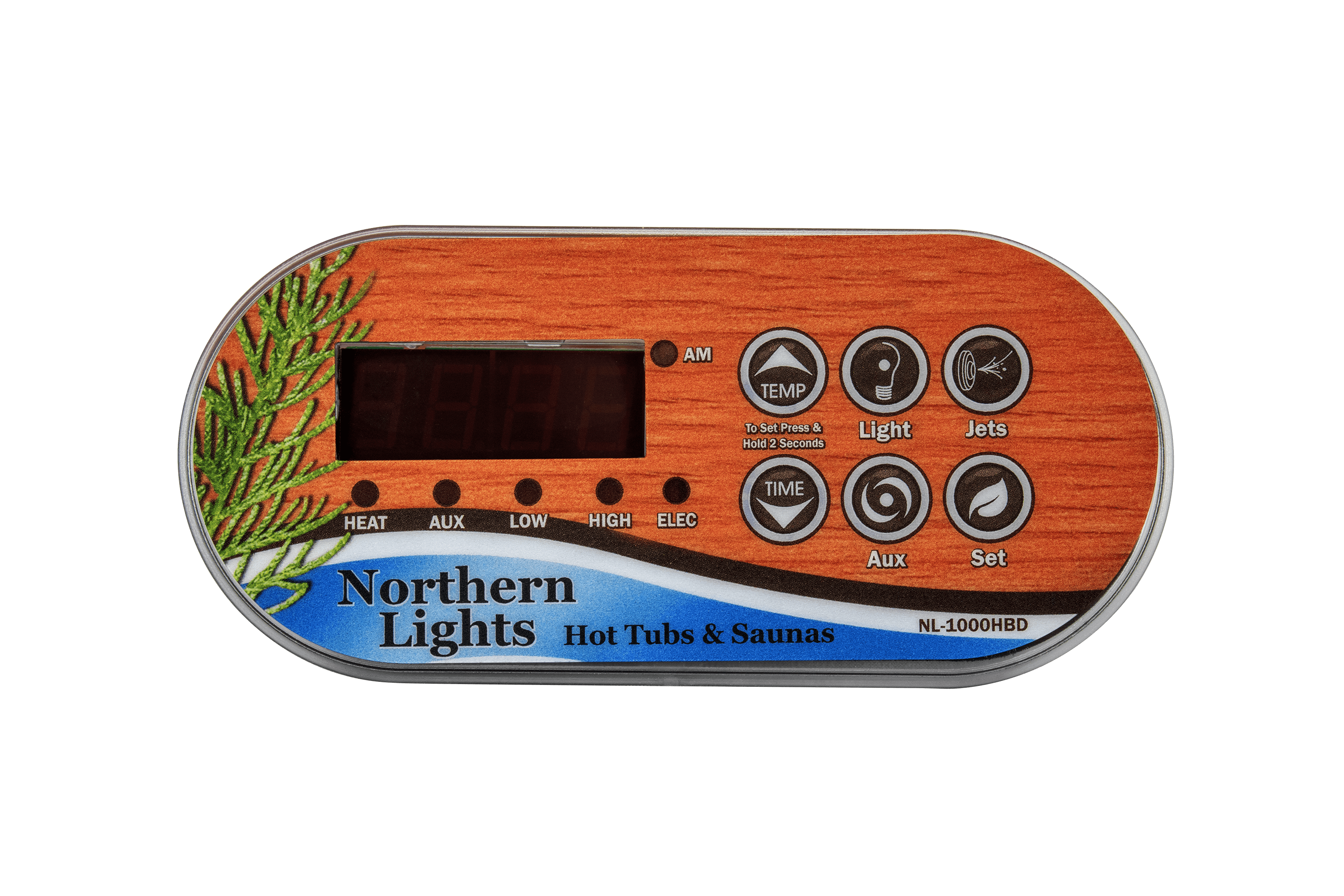

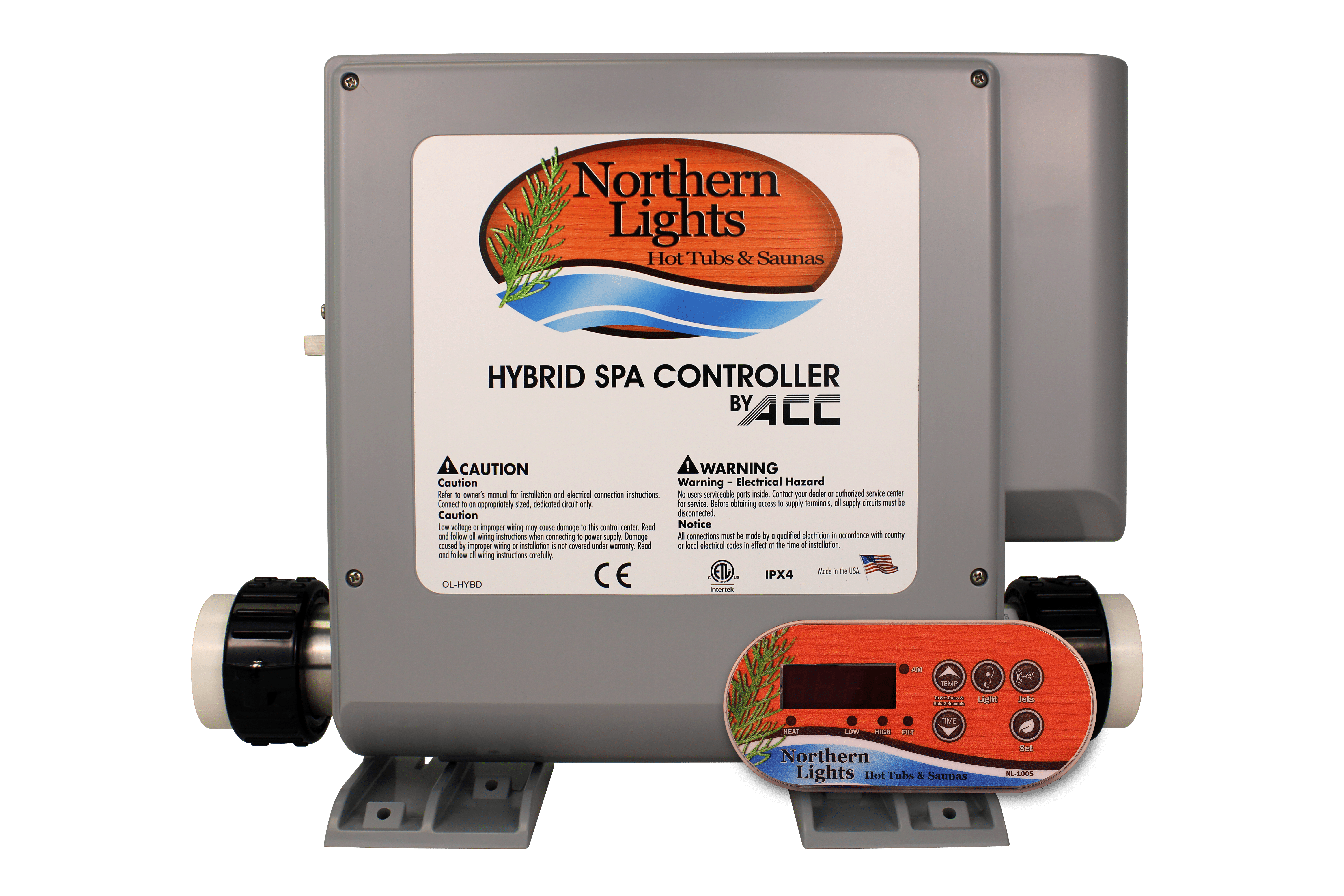

Topside Controller Included

SmarTouch Digital family of intelligent electronic spa controls are built with the culmination of 35 years of experience. A reliable energy efficient spa controller, so advanced but easy to operate, is conveniently located at your fingertips. A high intensity, oversized characters, LED display or our multi colored LCD display, keeps you informed of the heating mode, the spa temperature, time-of-day and elapsed time and a list of error codes, to inform and identify a malfunction.

Specifications

• Model# - SMTD-1000-OD-NL-HYBD
• Single Pump - 2 speed pump or circulation pump 120 or 240V
• Light - 12VAC
• Heater - 5.5/1.25KW / GAS (Aux) (240 or 120 VAC)
• Power - 240 or 120VAC
• Aux Power - 240 or 120VAC (12A max)
• Aux on/off remote control – Normally Open Dry contact
• Amperage - 41A
• Breaker Capacity - 50 Amps
• Wire Size - #6 AWG copper conductor
• UL Listed and weatherproof (ETL Certified Canada/US)
• Dimensions - 19” W X 14.5” H X 5.5” D
• Includes 2" PVC connections
• 1 Year Manufacturers Warranty
