3 HP Spa Pump - Vico Ultimax by UltraJet/Balboa Niagara Hot Tub Pump -230 VAC

larger image

3 HP Spa Pump - Vico Ultimax by UltraJet/Balboa Niagara Hot Tub Pump -230 VAC

C-559

3 HP 2-Speed Spa Pump 240 volts – Balboa Ultimax Niagara PN: 5235210-S 3450/1725 Read More

Shipping Weight: 40kgs
Manufactured by: Balboa

2 Units in Stock

Write Review

$401.73

Item Description

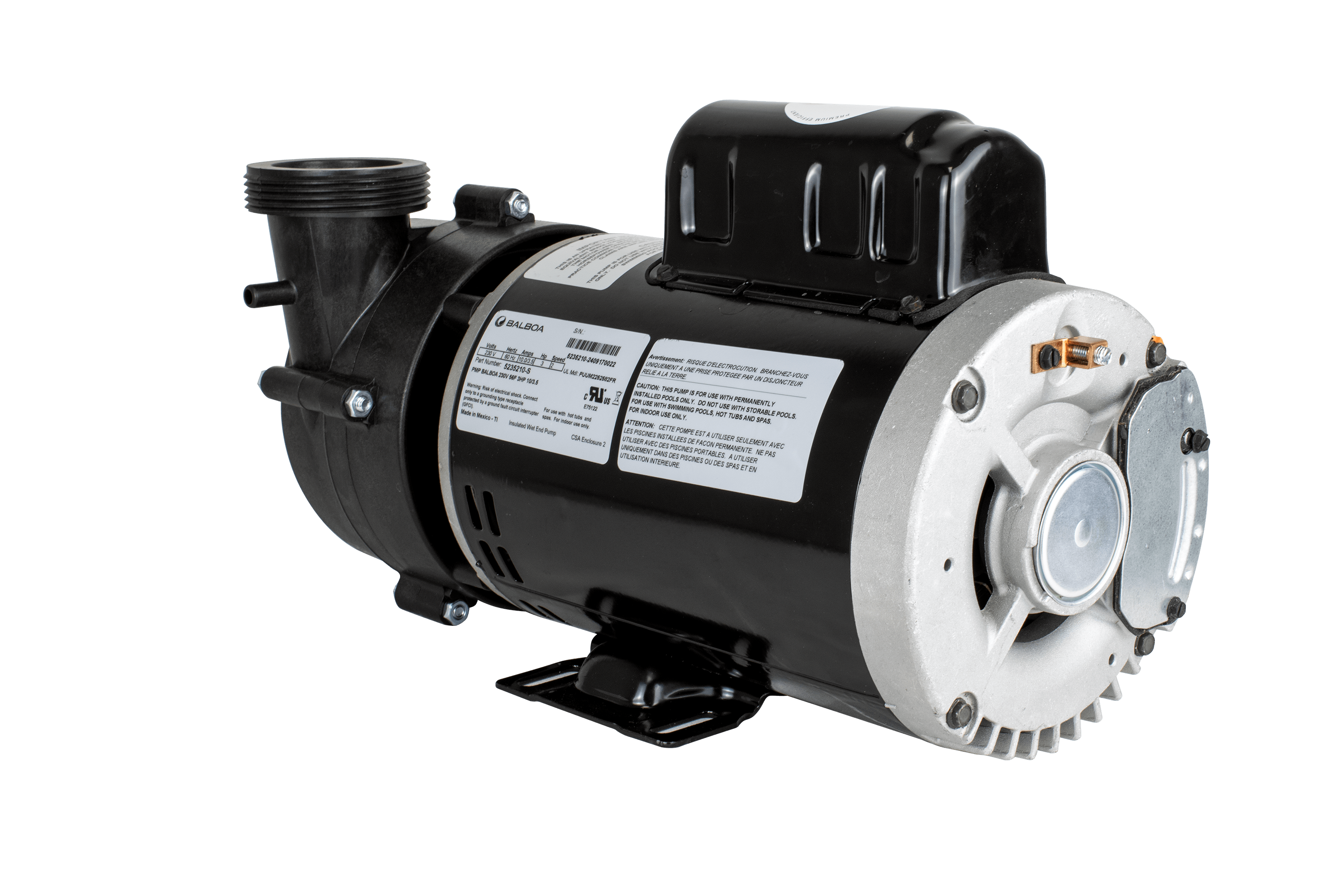

3 HP 2-Speed Spa Pump 240 volts – Balboa Ultimax Niagara

PN: 5235210-S

3450/1725 RPM, Frame 56, 10.0/3.5 Amps motor, 2” side discharge wet end

Formerly marked as Ultimax model by UltraJet, Vico, Pentair and Balboa

Can also be used as a 1-Speed 3 HP pump

Balboa 3 HP Pump

Premier Niagara pumps are the ultimate benchmark in design
flexibility and performance. From small applications for zone
seating and focused therapy up to multi pump configurations
to run 100+ jetted systems, Niagara pumps supply the specific performance features you require and the long service life
and powerful performance spa owners demand.

Niagara pumps offer the options you need...an energy-efficient
package, unsurpassed design flexibility, ease of installation,
high flow rate and dependable operation. .

Features
• High flow rates exceeding 325 gallons per minute
for maximum performance in your luxury applications

• All seals are carbon ceramic with Viton® elastomers for
long-lasting performance, easily enduring prolonged heat
and chemical exposure

• Multi-directional volute mountings provide the flexibility to
accommodate any configuration; 2” suction

• Cool running 56 frame motor

• Two-speed motor from 1.5 to 4 HP; with
two-speed models, sanitization and heating can occur while
maintaining lower running costs

• Specify an ultra efficient motor and our highest efficiency
hydraulics versions help meet appliance efficiency regulations

• Reliable performance and long service life for more
enjoyable ownership

• UL, TUV, CSA, and CE/VDE/GS certified

This energy efficient pump, Balboa's Niagara ( formerly Ultra Jet Ultimax), meets and exceed the most strict level of municipal noise requirements. This pumps is intended as a replacement for common true 3.0 HP 230 volt side discharge pumps that use 2” unions at both the suction and discharge connections. The pump is normally directly wired to receptacle of spa pack. Save your old pump’s cord so you have the correct connector. Safety features include auto motor overheat shut off protection. This pump is designed as a 2 speed pump but can also replace any single 1-speed 3 HP pump.

Comes complete with two 2" replacement unions. Drain plug ensures no water is left in the pump body during storage, which is useful for hygienic reasons and also prevents freeze damage where applicable. All Niagara (formerly Ultimax) pumps have discharge and suction nipples that allow for a side stream flow, for such purposes as an ozonator venturi. If your hot tub uses these nipples, they must first be drilled out on the new replacement pump before they become active.

The unit is backed by a 2 year manufactures warranty that includes both the pump and the motor. If the pump fails during this period we will ship a replacement and you may be required to return the defective pump. Warranty does not cover frost damage, damage as a result of running the unit dry or damage caused by incorrect wiring or applying incorrect voltage..

Balboa is the largest spa parts manufacture in the world. These pumps are NOT CHINESE and are proudly manufactured in the USA (Tustin, California)

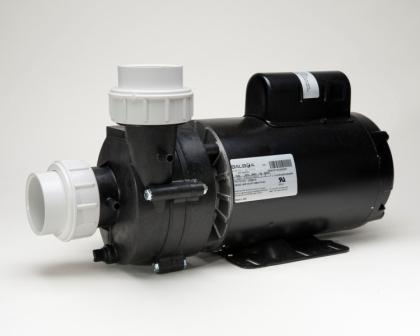

comes with 2" pump unions

HP 2-Speed Spa 2" pump unions

Specifications:

• amps (min/max) = 10.0/3.5amps

• rpm (min/max)= 1750/3400 rpm

• 240VAC 60 Hz, 2 speed

• frame = 56 (6.69" wide motor)

• length = 15.82"

• height = 8.83"

• Connection side = 2"

• warranty = 2 years
